Philips Glodway G30 Patient Monitor CO2 Module Board PCB 011204 RS09030A RS089

► Product Overview

• This PCB board is the core module board for end-tidal carbon dioxide (CO₂) acquisition and processing on the Philips Kinco G30 monitor, and is a key hardware component for realizing EtCO₂ monitoring. It receives gas signals from the mains or bypass CO₂ sampling tubing, calculates key parameters such as end-tidal carbon dioxide concentration and respiratory rate using an infrared spectroscopy analysis circuit, and transmits the processed data and waveforms to the mainboard for display on the screen.

• When the device experiences CO₂ value fluctuations, no waveform, sampling failure, or errors, replacing this original-specification PCB board can quickly restore the G30 monitor's CO₂ monitoring function. It is a commonly used key component for equipment maintenance in clinical settings such as operating rooms, ICUs, and emergency rooms.

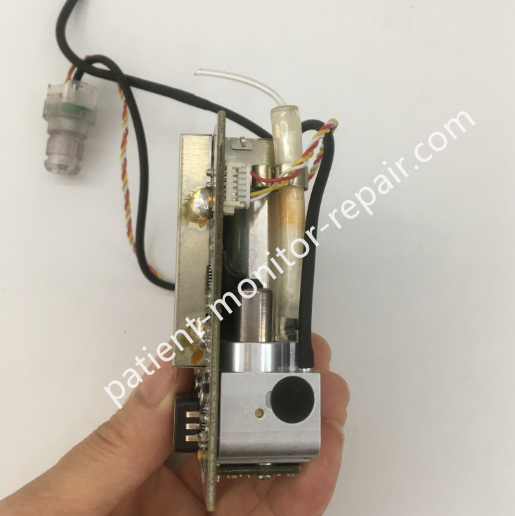

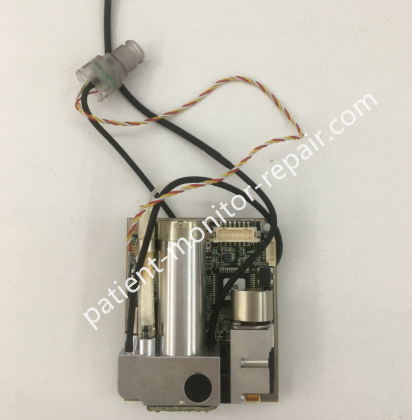

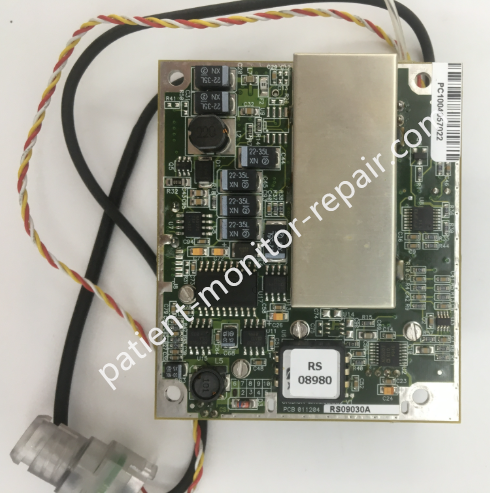

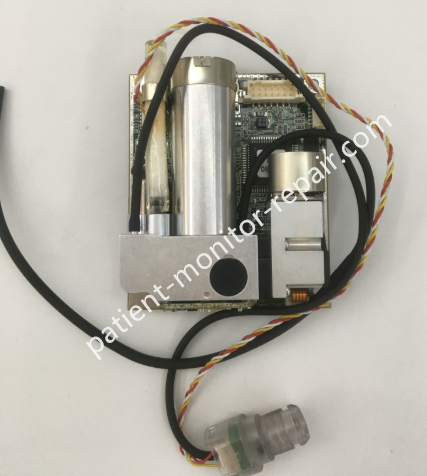

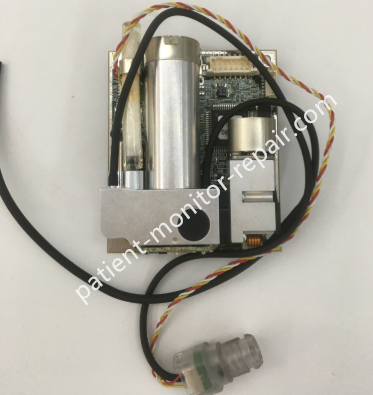

► Detailed Photos

Tags： Philips Glodway G30, Patient Monitor PCB Board, CO2 Module Board,
