Philips MX 100 X3 MSL Board PN 453564673811 LPN 782879753 with Box

Philips MX 100 X3 MSL Board

Philips MX 100 X3 MSL Board PN 453564673811 LPN 782879753 with Box

► Product Overview

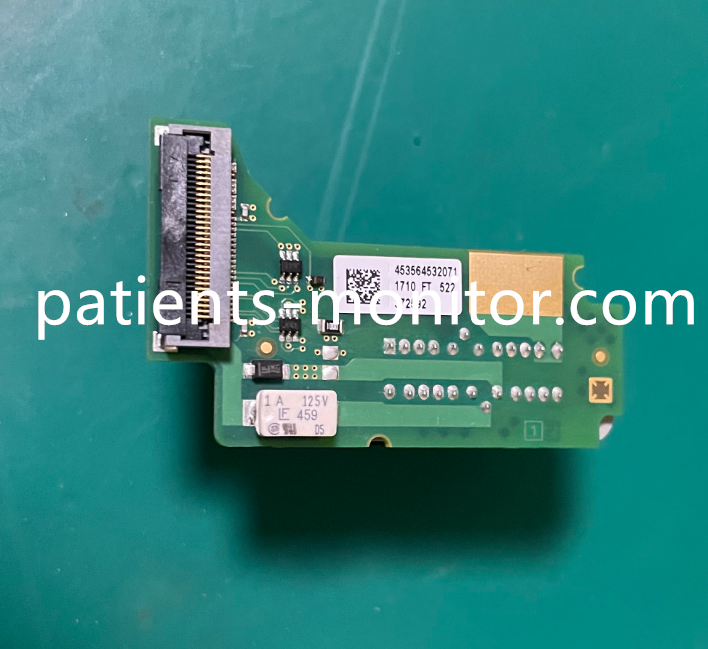

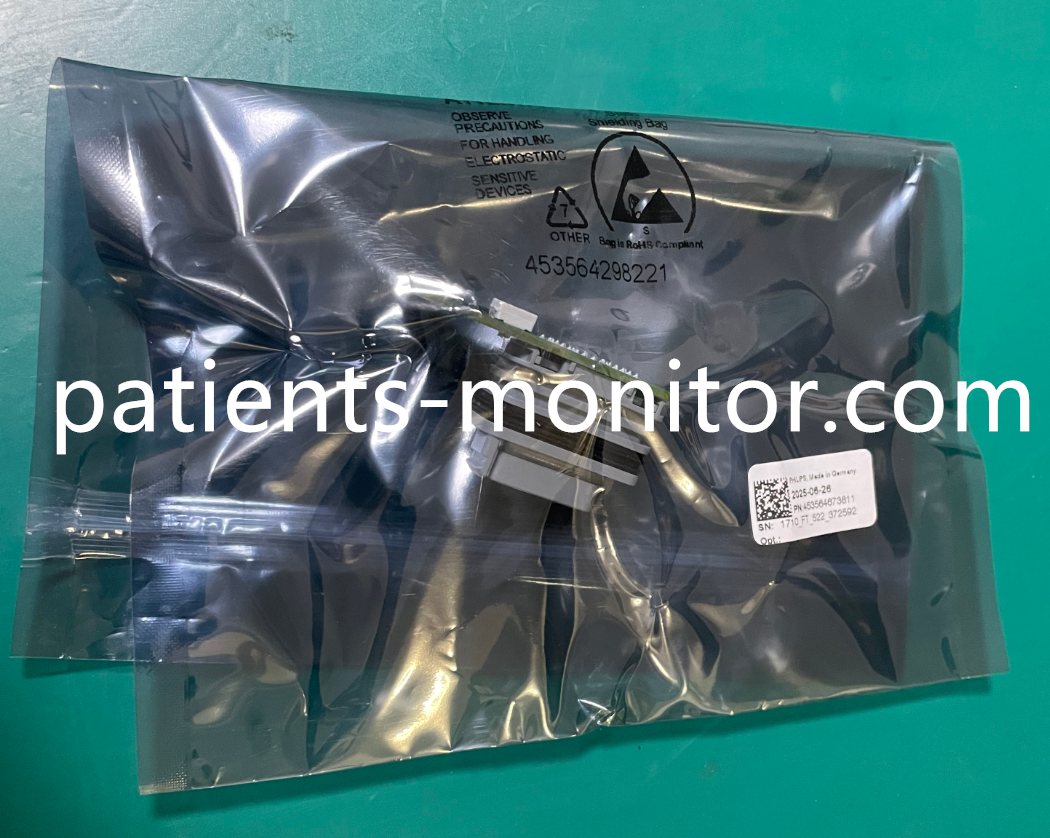

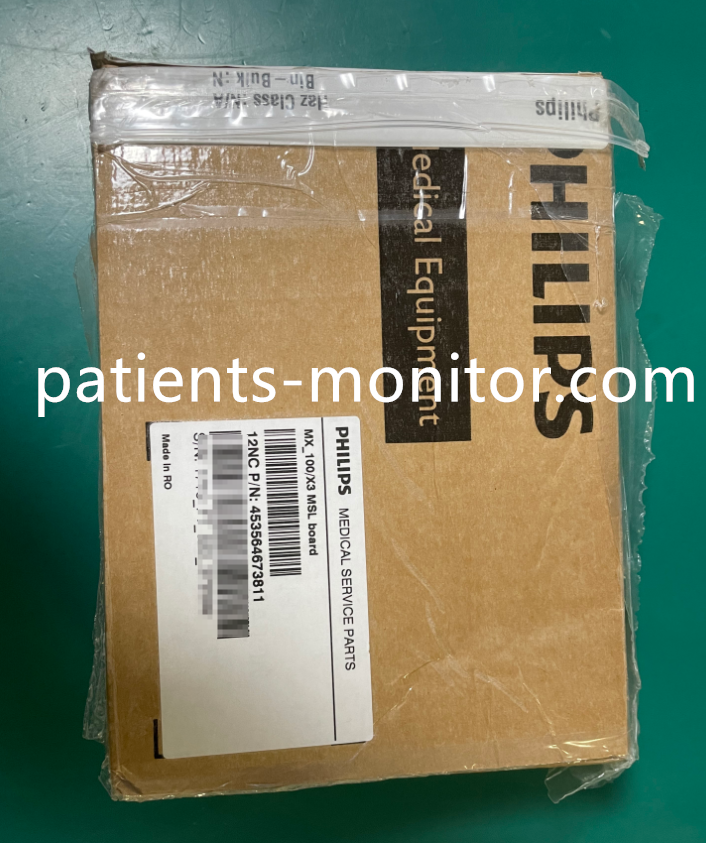

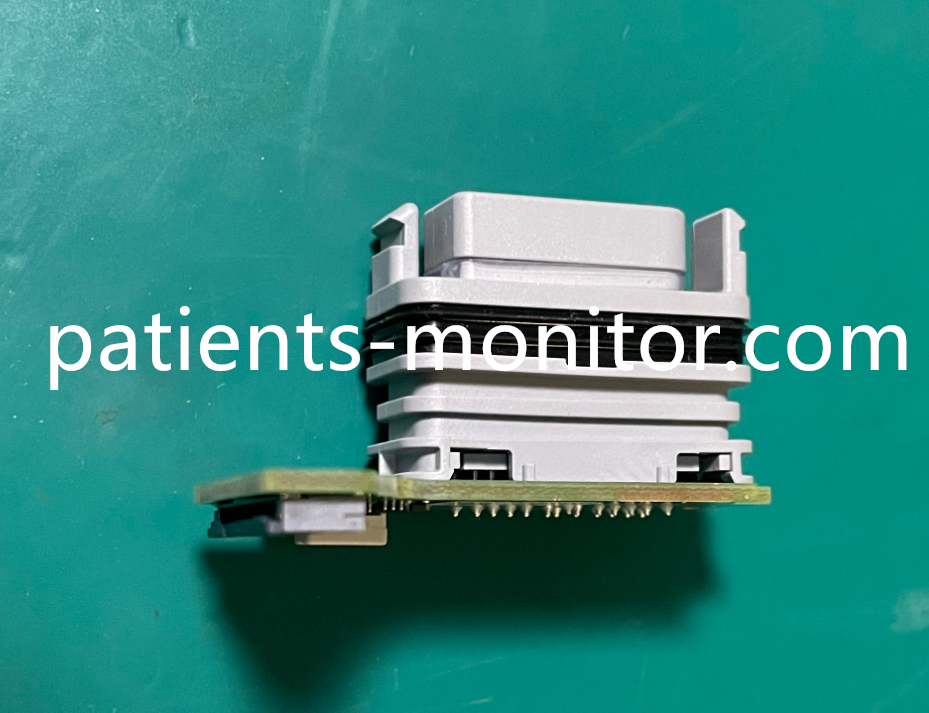

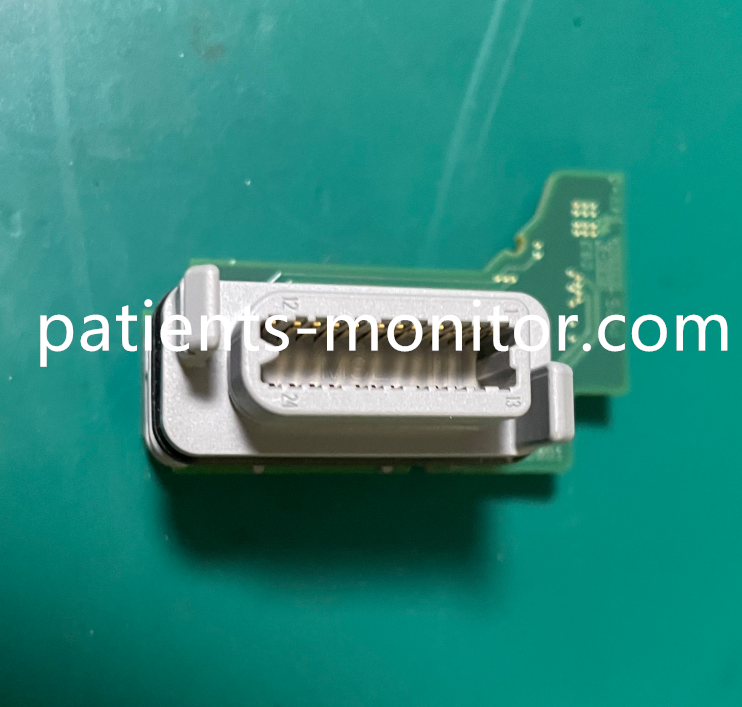

This is an original Philips patient monitor dedicated signal processing board. As seen in the images, the board features a compact design with a metal shielding cover on the surface to reduce electromagnetic interference. One end of the board has a high-density FPC connector for connecting to the host, while the other end features a D-sub connector for linking to external sensors or modules. This component is primarily responsible for acquiring and processing various physiological signals from patients, serving as a core module for the stable operation of the monitor. The product includes the original anti-static bag and official carton packaging to ensure safe shipping.

This MSL board (typically referring to a Modular Signal Logic or Main Signal board) acts as the "nerve center" in Philips monitors. It is responsible for receiving analog signals from sensors such as SpO2, NIBP, and ECG, converting them into digital signals, and transmitting them to the main control board for analysis. If this board is faulty, the monitor may display signal loss, abnormal waveforms, or sensor recognition errors. Replacing this board can resolve such hardware issues completely.

► Specification

► Detailed Photos

Tags： Philips MX 100 X3 MSL Board, Patient Monitor Signal Processing Board, LPN 782879753,
