Original Philips TC10 ECG Machine Display Panel Board Assembly 453564384321 453564384311

Philips PageWriter TC10 ECG

Original Philips TC10 ECG Machine Display Panel Board Assembly 453564384321 453564384311

► Product Overview

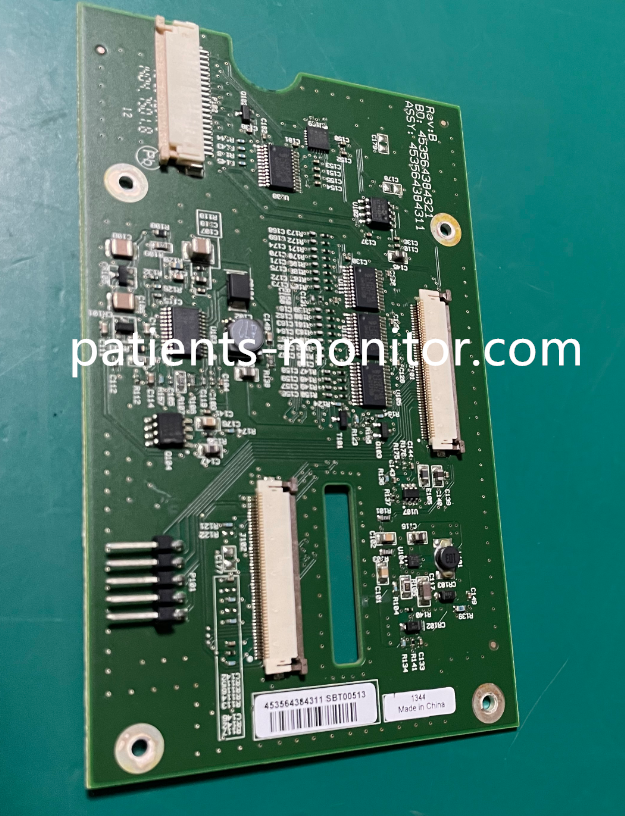

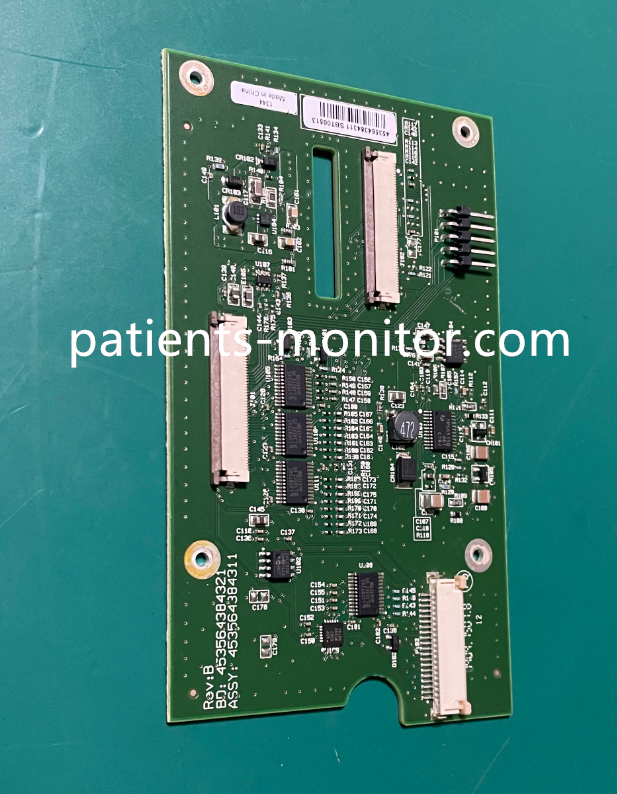

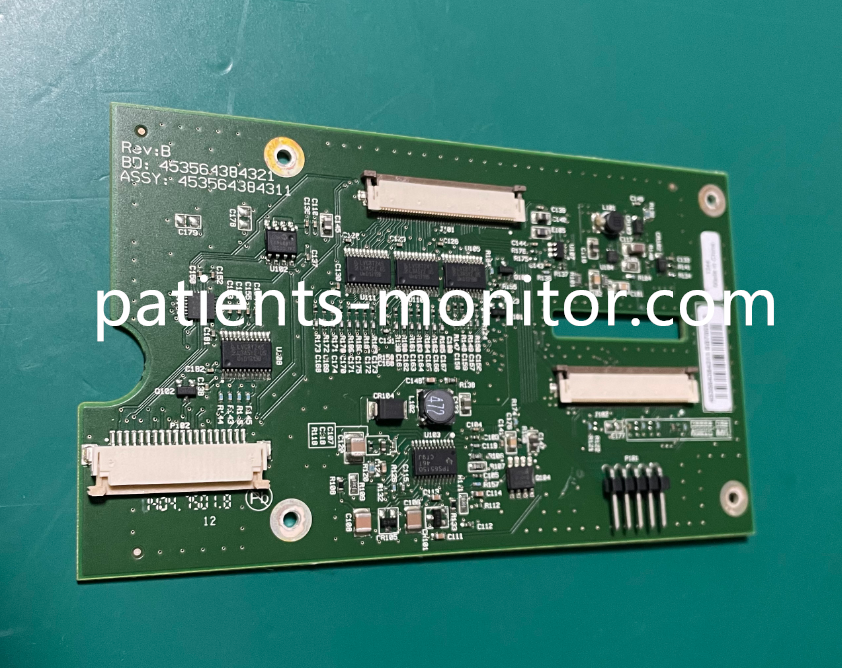

This circuit board is the core display component of the Philips TC10 12-lead ECG machine. As seen in the pictures, it features a high-density green PCB base with a compact layout. The board integrates multiple FFC/FPC (Flexible Flat Cable) connectors to link the LCD screen and the main motherboard, ensuring high-speed transmission of ECG waveforms and menu information. The board is clearly silk-screened with part numbers 453564384321 (Board ID) and 453564384311 (Assembly), indicating it is the original Rev B version. As a display driver board, its primary function is to process signals from the ECG host and drive the screen, serving as a crucial bridge for human-machine interaction.

This display board is the "eye" of the Philips TC10 ECG machine. When the ECG machine displays a black screen, distorted images, garbled characters, or unresponsive touchscreen, it usually indicates a fault in the display driver board. Replacing this board can restore the device's display function, allowing it to continue being used for clinical diagnosis.
