Philips IntelliVue X3 Patient Monitor Masimo SpO2 Blood Oxygen Board 2250202109 25076-P

X3 Monitor SpO2 Blood Oxygen Board

Philips IntelliVue X3 Patient Monitor Masimo SpO2 Blood Oxygen Board 2250202109 25076-P

► Brief Description

The Philips X3 patient monitor's pulse oximeter is a compact and environmentally friendly printed circuit board that integrates a professional pulse oximetry processing chip, data transmission interface, and various medical electronic components. It utilizes Masimo Rainbow SET technology for SpO2 measurement and other related measurements. As the SpO2 module of the medical monitoring device, this board is primarily responsible for collecting, analyzing, and transmitting physiological parameters such as pulse oximetry and pulse rate. This provides accurate and reliable support for the device's SpO2 monitoring function.

► Specification

► Monitoring SpO2

Philips pulse oximetry employs a motion-tolerant signal processing algorithm based on Fourier Artifact Suppression Technology (FAST), which provides the following measurements:

• Arterial blood oxygen saturation (SpO2): the percentage of oxygenated hemoglobin relative to the total of oxyhemoglobin and deoxyhemoglobin (functional arterial oxygen saturation).

• Plethysmographic (pleth) waveform: a visual indicator of the patient’s pulse.

• Pulse rate (derived from the pleth waveform): the number of pulsations detected per minute.

• Perfusion indicator: a numerical value corresponding to the pulsatile portion of the measured signal caused by arterial pulsation.

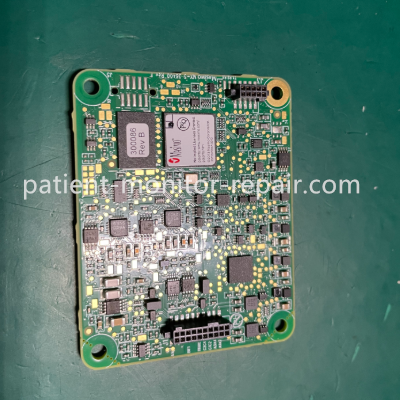

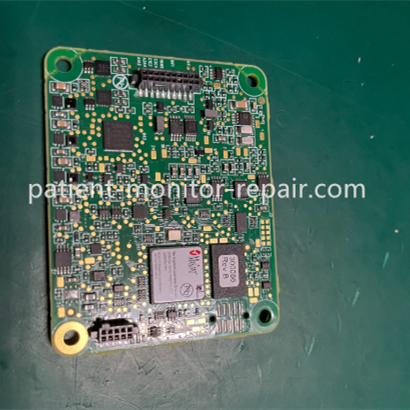

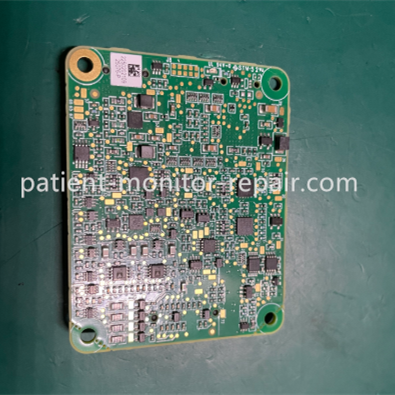

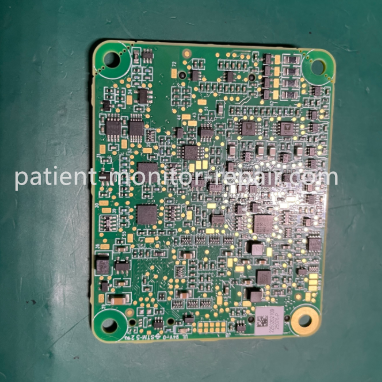

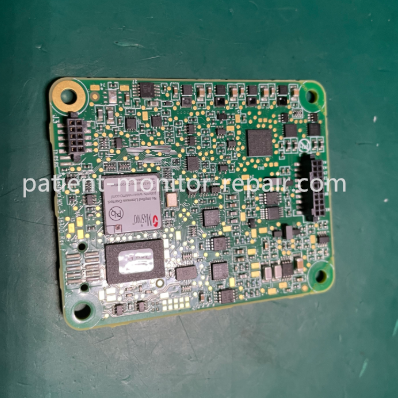

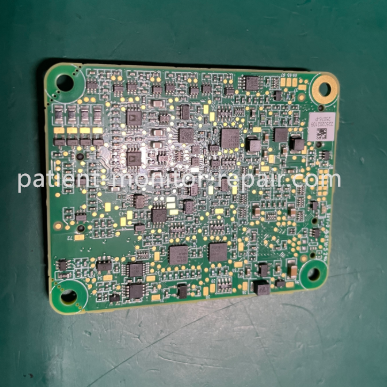

► Detailed Photos

Tags： Blood Oxygen Board, Philips IntelliVue X3, X3 SpO2 Board, Patient Monitor Parts,
