TXO9D70VM1CEA 3.5 Inches LCD Screen Display Module for Philips IntelliVue MP2 X2 Patient Monitor

3.5 Inches LCD Screen Display

TXO9D70VM1CEA 3.5 Inches LCD Screen Display Module for Philips IntelliVue MP2 X2 Patient Monitor

► Brief Description

This is a 3.5-inch LCD display module specifically designed for the Philips IntelliVue MP2/X2 patient monitor. Its core driver board, model TXO9D70VM1CEA, is designed by Hitachi but manufactured in Taiwan.

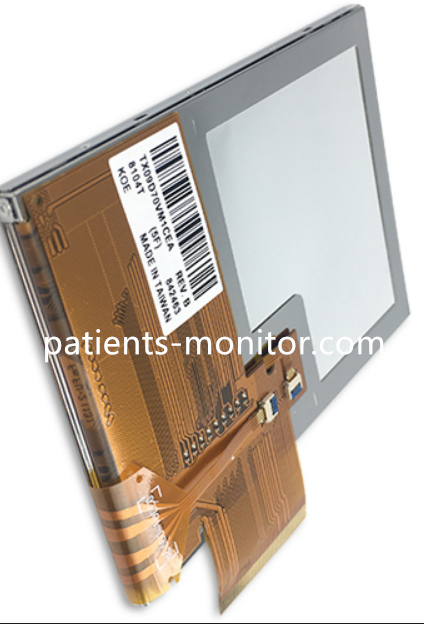

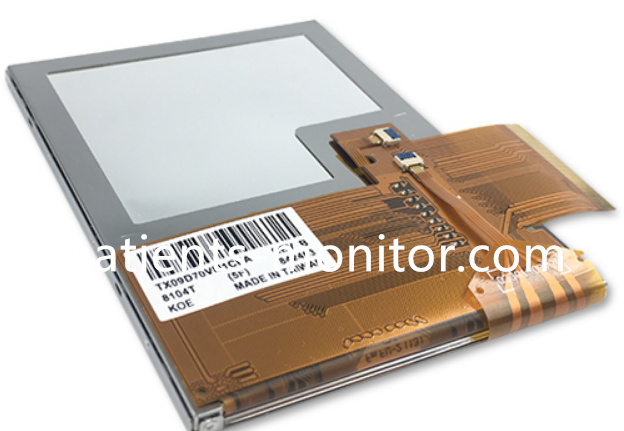

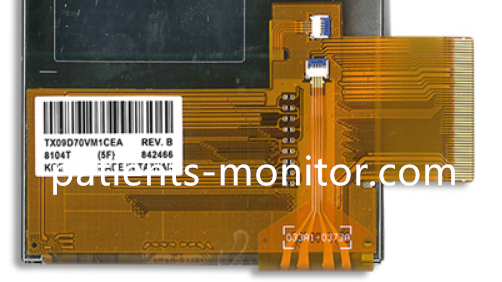

This module is not a bare screen but a complete display assembly including driver circuitry, a flexible ribbon cable, and connectors. The back of the module is labeled "TXO9D70VM1CEA REV. B" and printed with "MADE IN TAIWAN". The flexible ribbon cable is designed to connect to the motherboard for image signal transmission and power supply.

This component falls under the "Display Kit" category; care must be taken when replacing it to ensure proper cable connector orientation and mounting method to avoid damage.

► Specification

► Product Installation

Removing the Old Module:

Carefully remove the original display screen following the steps in Chapter 5 of the service manual.

Connecting the New Module:

Insert the flex cable of the TXO9D70VM1CEA into the corresponding interface on the motherboard.

Securing the Module:

Place the module into the casing and secure it with screws or clips.

Power-On Test:

Power on the device and check the display effect, ensuring there is no screen flickering or distortion.

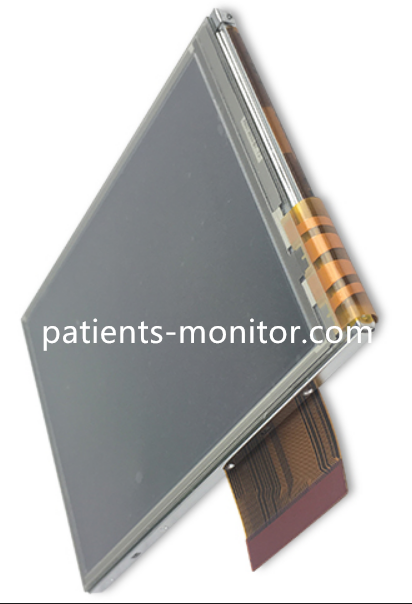

► Detailed Photos

Tags： TXO9D70VM1CEA LCD Screen, Philips IntelliVue MP2 X2 Monitor, Hitachi 3.5 Inch Display Module,
