M3012-42201 M3012A Parameter Front Bezel Panel for Philips IntelliVue Patient Monitor MMS Module

Philips M3012A M3012-42201 Parameter Front

M3012-42201 M3012A Parameter Front Bezel Panel for Philips IntelliVue Patient Monitor MMS Module

► Brief Description

The M3012-42201 is the front panel, part of the appearance and structural components. It is part of the M3012A measurement server extension. This off-white plastic panel features four independent sensor connection holes.

Functions:

1. Structural Protection: Covers and protects internal electronic components.

2. Interface Labeling: The panel is labeled with the interface names for various measurement parameters in a specific layout, including the cardiac output (C.O.) port, two temperature (Temp) ports, and two invasive blood pressure (Press) ports, guiding users to connect cables correctly.

3. Aesthetic Enhancement: Improves the device's appearance.

► Specification

► Installation

Power off: Ensure the patient monitor is powered off before servicing.

Remove the old panel: Carefully pry off the damaged frame from the module housing using a small flathead screwdriver (starting from the edge).

Install the new panel: Align the new M3012-42201 panel with the front of the module and press firmly until you hear a click.

Check alignment: Ensure there are no gaps between the panel and the module, and that the buttons/ports are fully aligned.

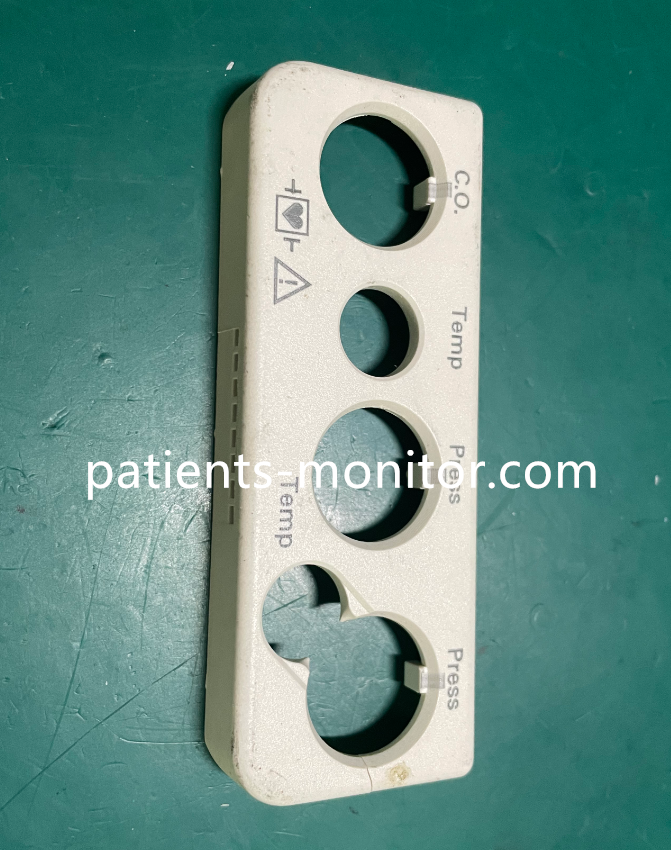

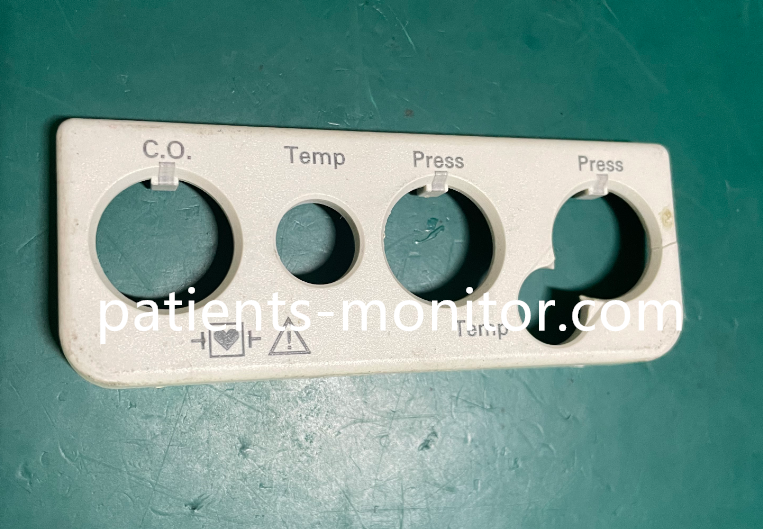

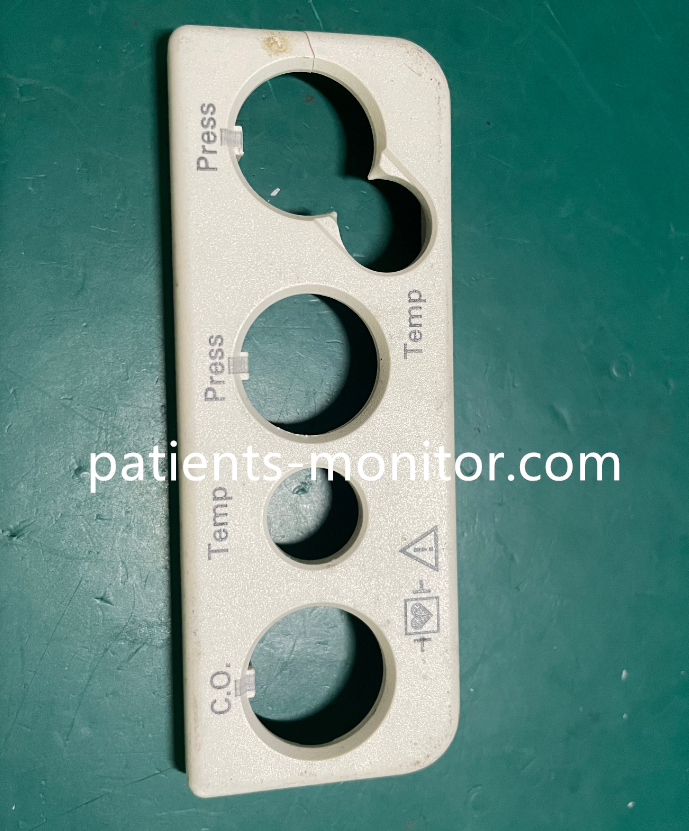

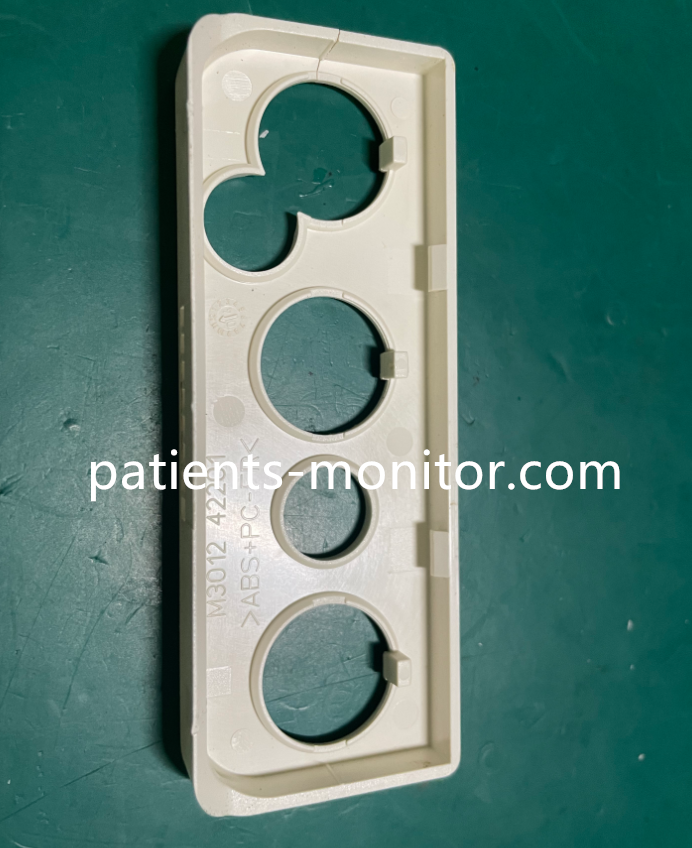

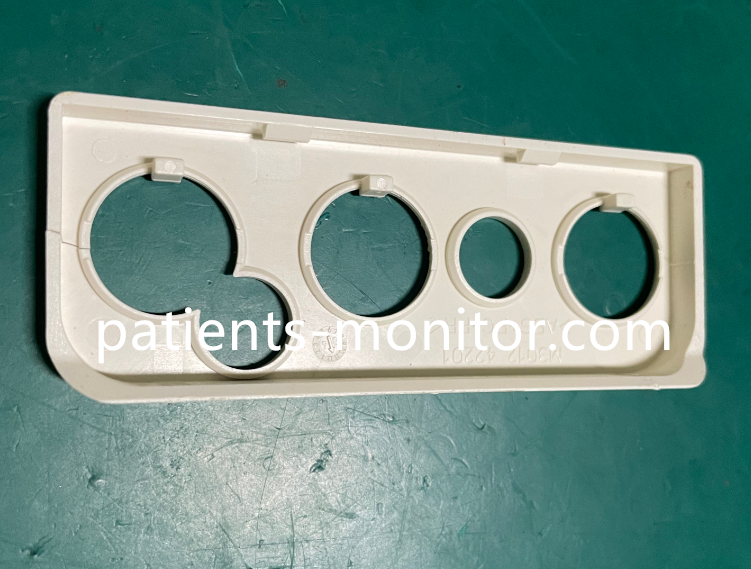

► Detailed Photos

Tags： Philips M3012-42201 Front Panel, Replacement Front Bezel, M3012A Measurement Server Extension Module,
