Philips M3014A Side Panel Parameter Expansion Bracket Mounting Tray For IntelliVue Patient Monitor

Philips M3014A Side Panel

Philips M3014A Side Panel Parameter Expansion Bracket Mounting Tray For IntelliVue Patient Monitor

► Brief Description

This is a mechanical accessory for Philips IntelliVue patient monitors (MP20, MP30, MP40, MP50, MP60, MX400, MX500, MX600, MX700, MX800 series).

Function: This accessory itself does not have measurement capabilities. Its purpose is to serve as a stand or base for the physical mounting and securing of the M3014A gas module.

It integrates the M3014A gas module into the monitor and connects it to an expansion slot on the side of the monitor's main unit. This panel has pre-installed mounting positions for standard CO₂, Press (invasive blood pressure), and Temp (body temperature) modules, ensuring perfect compatibility with mainstream or bypass carbon dioxide monitoring modules, invasive blood pressure modules, and body temperature probe modules.

It is mounted as a side panel on the side of the monitor's main unit, enabling the device to expand with advanced hemodynamic and respiratory gas monitoring capabilities.

► Specification

► Usage Guide

Please insert this panel directly into the expansion port on the side of the monitor.

During installation, ensure the guide rails on the panel are aligned with the slots on the monitor, and gently push it in until you hear a "click".

Do not force it in, as this may damage the internal precision contacts.

After installation, you can insert carbon dioxide, pressure, temperature, and other measuring modules into the corresponding holes on this panel.

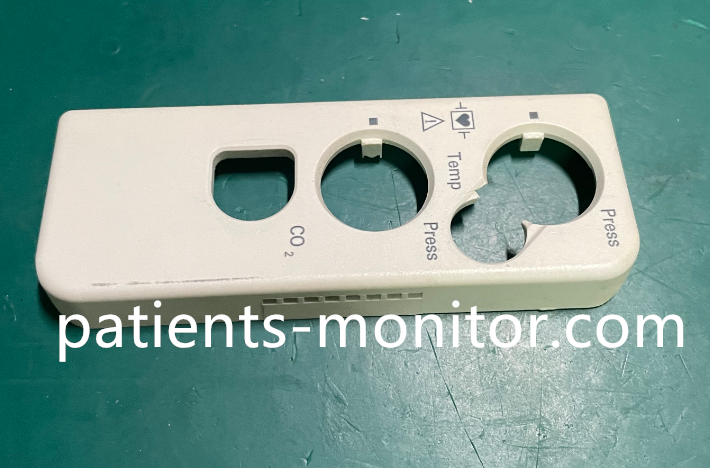

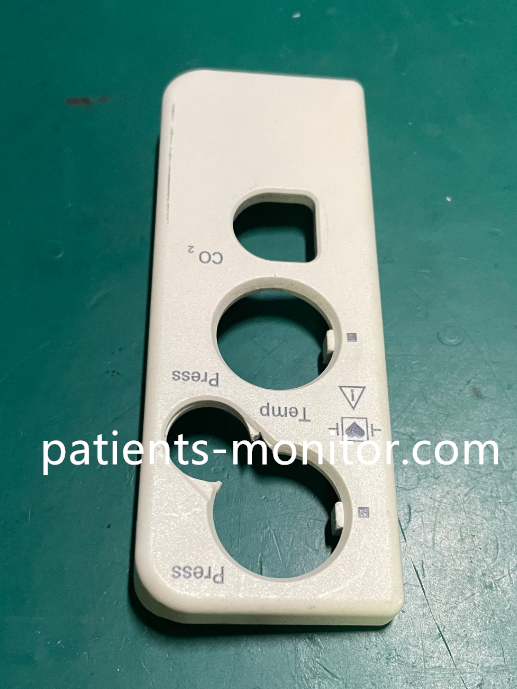

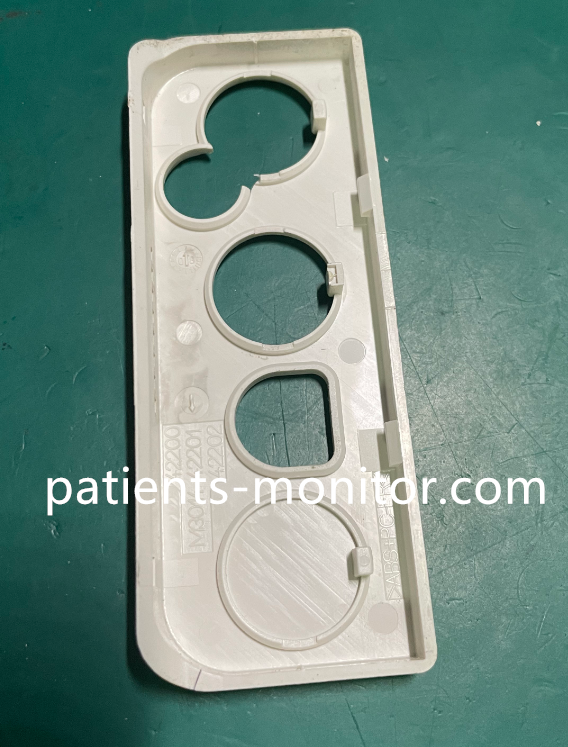

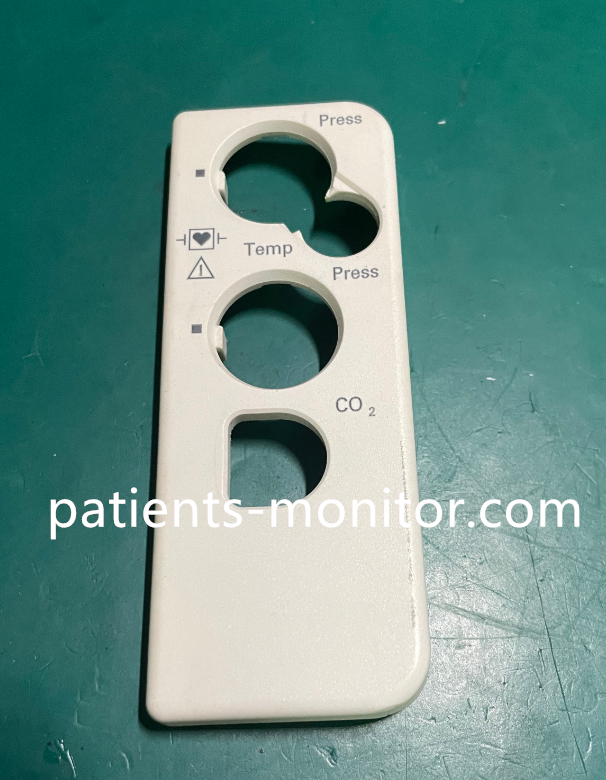

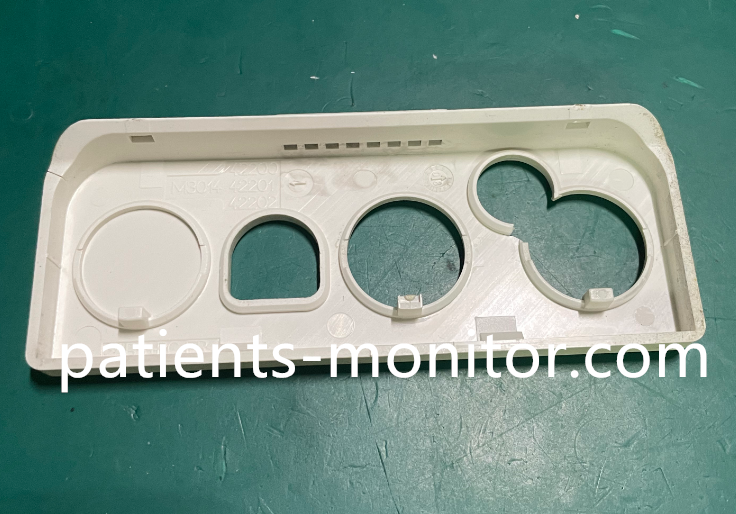

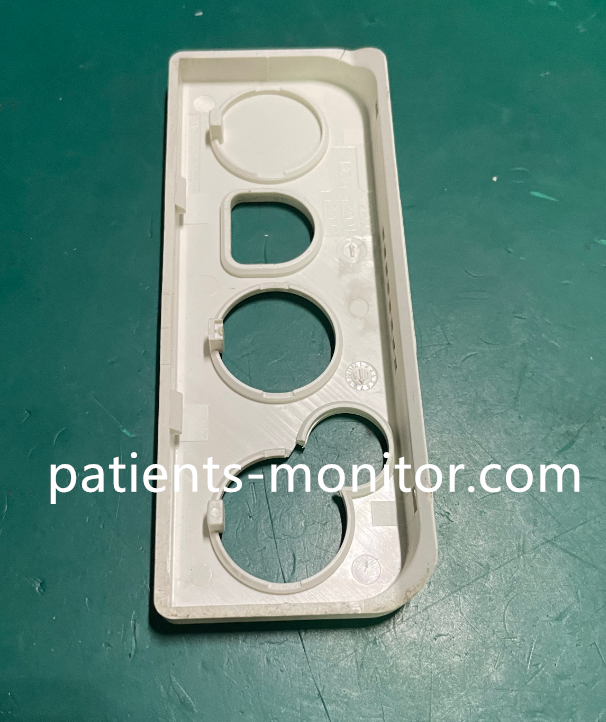

► Detailed Photos

Tags： Philips M3014A Side Parameter Panel, Patient Monitor Accessory, Case Replacement Part, Expansion Bracket Mounting Tray,
