M3014-66441 Philips M3014A Parameter Board Main Board For IntelliVue Patient Monitor CO2 Monitoring

Philips M3014A Parameter Board

M3014-66441 Philips M3014A Parameter Board Main Board For IntelliVue Patient Monitor CO2 Monitoring

► Brief Description

The M3014A module itself provides mainstream carbon dioxide monitoring functionality for IntelliVue patient monitors (such as the MP20 and MP30).

Function Description: This module continuously measures the carbon dioxide concentration in the patient's exhaled breath using infrared absorption spectroscopy.

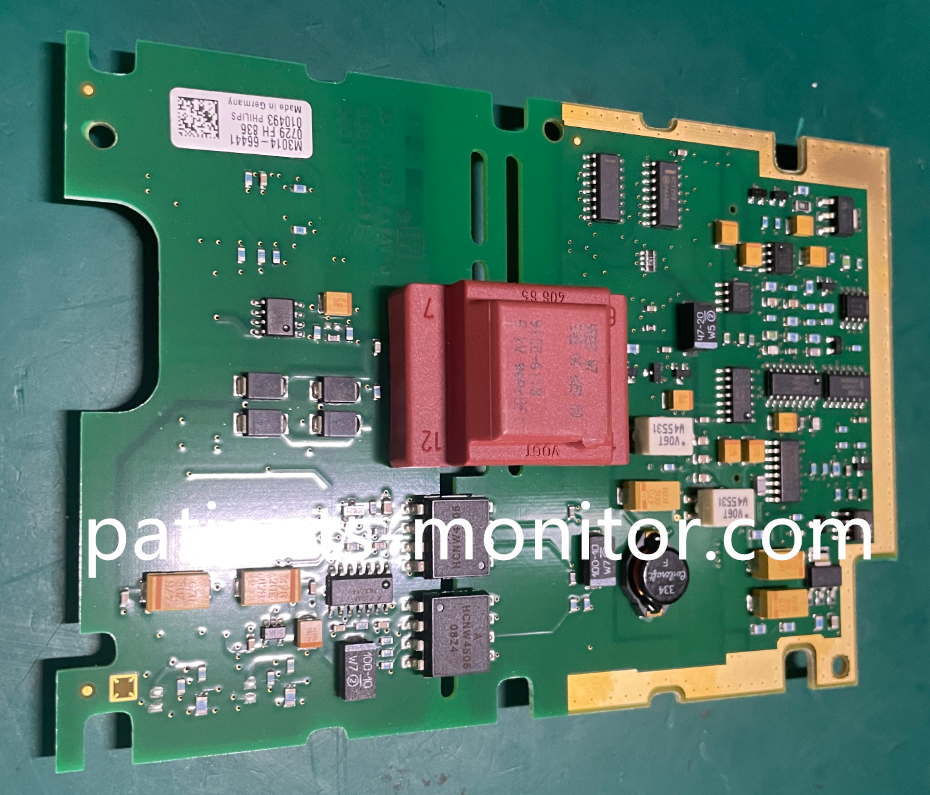

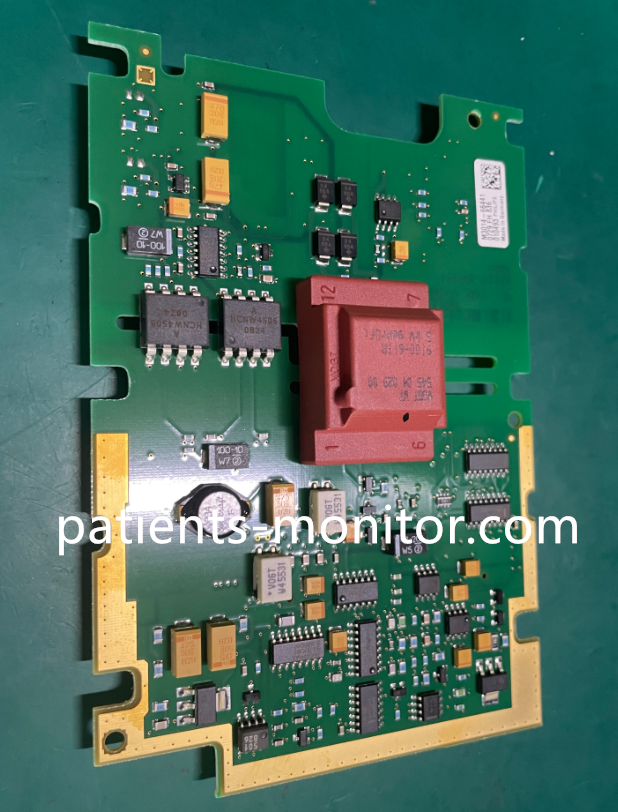

The M3014-66441 green PCB board integrates a microprocessor, a red power transformer, multiple connectors, and various electronic components, forming the core of the M3014A carbon dioxide graphical expansion module.

M3014-66441 Functions:

1. Signal Processing: Receives analog signals from a mainstream carbon dioxide sensor (connected in the patient's airway) and converts them into digital data.

2. Control Functions: Controls sensor heating (maintaining a constant temperature), zero-point calibration, and the gas sampling process.

3. Communication: Exchanges data with the monitoring host via the MSL (Measurement Signal Link) interface, transmitting EtCO2 (end-tidal carbon dioxide), numerical values, and respiratory rate to the monitoring screen for display.

► Specification

► Usage Guide

Before use, ensure the mainboard is correctly connected to other components of the M3014A module (such as the CO2 sensor and power board).

Before powering on, check for loose connections. This device should only be operated by trained medical technicians.

Avoid use in humid or dusty environments. Perform regular self-tests and calibrations to ensure the accuracy of monitoring data.

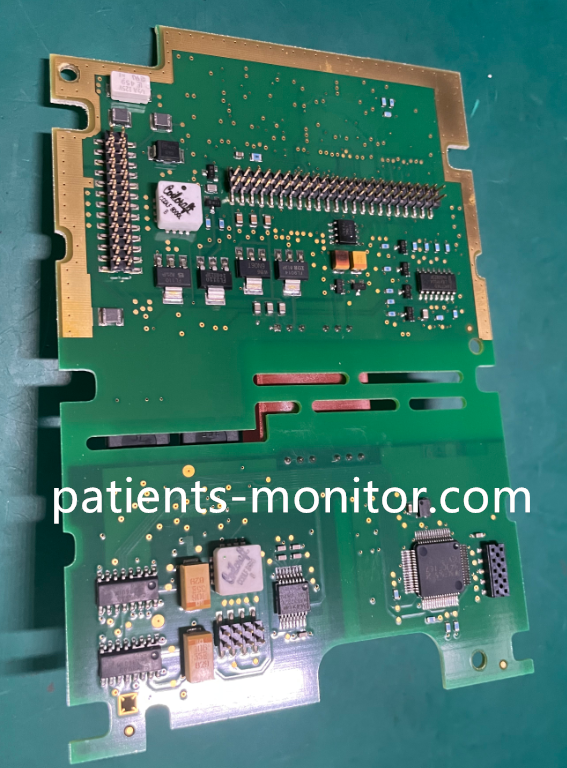

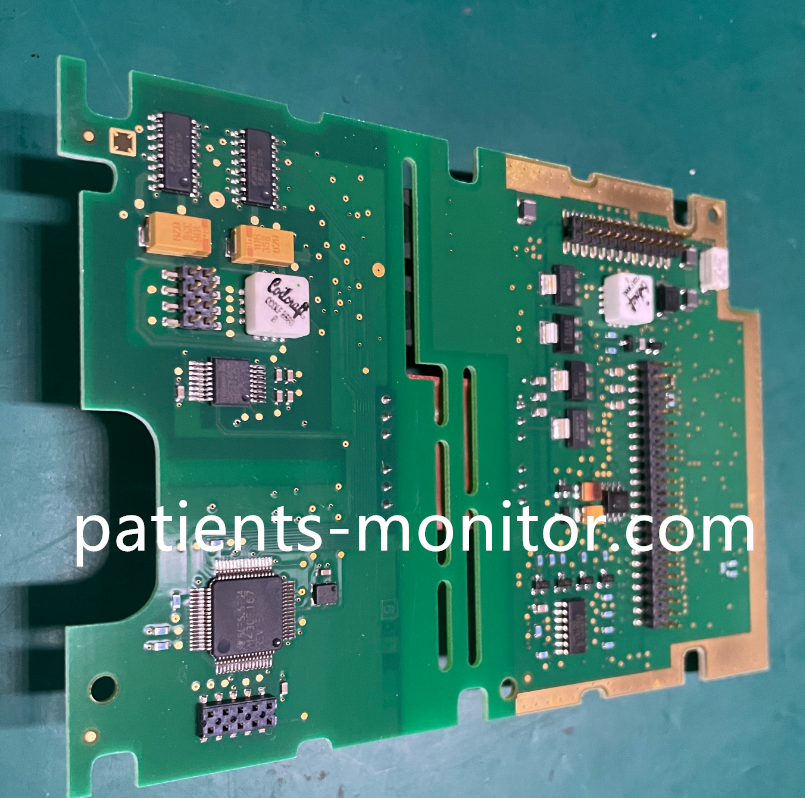

► Detailed Photos
